OAM as IDP and SP (2 OAM PS3)

Oracle Access Manager can act as Identity Provider or Service Provider based on requirement.I configured a use case where one OAM is acting as IDP and another one acting as SP. High level steps  are as below:

 Download the IDP OAM metadata by accessing the below URL:
http://<IDP-OAM>:14100/oamfed/sp/metadata

Note that metadata consists both IDP and SP in one file. While importing IDP metadata remove SP metadata from the file.

Login to the SP OAM console and click on federation. Click on Service Provider Management.
Import the Idp metadata.
Click ‘Create Authentication Scheme and Module’ to create the scheme and module.



Now Login to Idp VM and import the Service provide metadata.
Remember to modify the metadata to contain only Service Provider metadata.

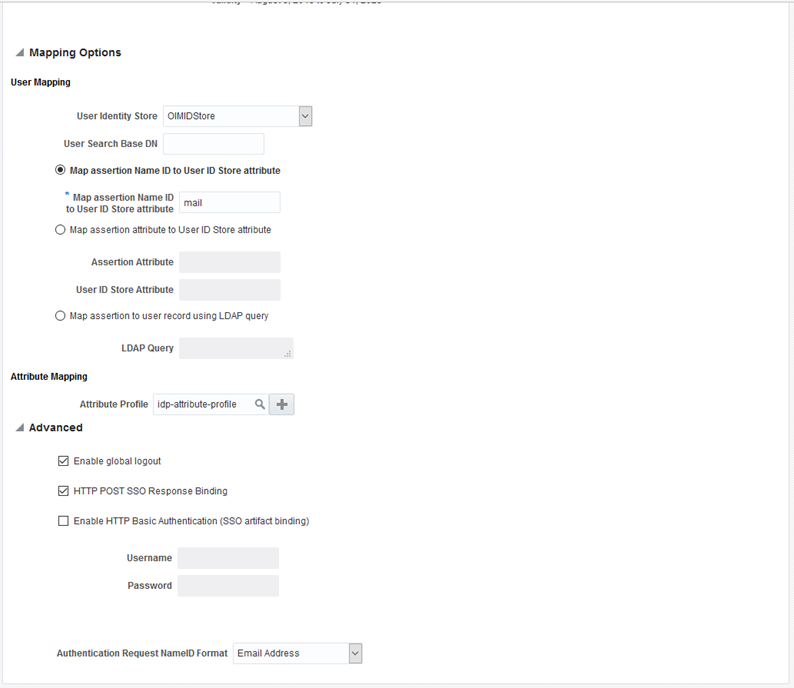

Provide the NameID Value as mail.



Access any application protected by SP OAM and it will redirect to the IDP -OAM.
